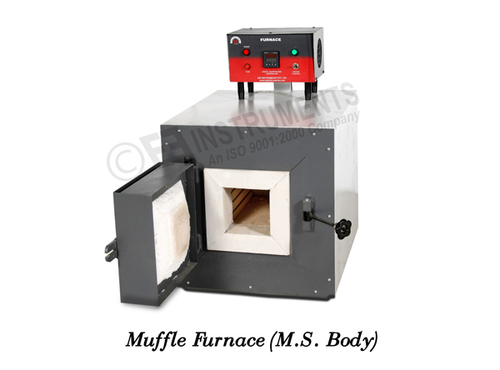

Lightweight Muffle Furnace

Lightweight Muffle Furnace
Lightweight Muffle Furnace
Send Inquiry
Product Code : EIE-107
Brand Name : EIE
Price And Quantity
  • Unit of Measure
Product Description

Lightweight Muffle Furnace

Our organization is emerged as one of the leading manufacturers, suppliers and exporters of Lightweight Muffle Furnace - 1200 deg.C. Our offered furnace is designed and developed in our well-constructed manufacturing unit so that the final output meets with the international quality standards. This furnace is thoroughly checked on various set parameters to ensure flawless finish. Lightweight Muffle Furnace - 1200 deg.C is highly acknowledged for corrosion resistance, longer service life and tough construction.

Features:

  • Accurate and quick heating elements
  • Uniform and stable temperature distribution
  • Automatic control PID and LED digital display
  • Convenient to operate
  • High temperature resistance and rapid thermal quench
  • Dual radiation heating elements
  • Excellent insulation properties for resisting thermal shock
  • Programmable intelligent digital temperature controller to control temperature

Technical Details:

Construction CRC sheet with stoving enamel
Insulation Ceramic fiber wool insulation
Max. Temp. 1200oC
Working Temp 1150oC
Temp.control Dual display microprocessor based Digital temperature indicator cum controller with Cr/A1 Sensor
Heatings APM wire in coil form wound on the muffle, embedded in high grade refractory Cement.
Std.Fittings Compensating cable, indicating lamps, Power plug and cord.
Operation 220/230 Volts AC single phase.

Working size (L X W X D)
225 x 100 x 100 mm
250 x 125 x 125 mm
300 x 150 x 150 mm
300 x 200 x 200 mm
450 x 225 x 225 mm

Selection Guide


Inner chamber size (mm) (H x W x D)

Power consumption (Kw)

Approximate Weight (Kgs)

Digital Model Numbers (EIE-107DP)

Digital GMP Model Numbers (EIE-107DG)

225 x 100 x 100 (9 x 4 x 4)

1.5

60

EIE-107DP2.25

EIE-107DG2.25

250 x 125 x 125 (10 x 5 x 5)

2.0

71

EIE-107DP4

EIE-107DG4

300 x 150 x 150 (12 x 6 x 6)

3.0

82

EIE-107DP7

EIE-107DG7

300 x 200 x 200 (12 x 8 x 8)

5.0

115

EIE-107DP12

EIE-107DG12

450 x 225 x 225 (18 x 9 x 9)

6.0

125

EIE-107DP23

EIE-107DG23


Trade Information
  • Payment Terms
  • Cheque, Cash in Advance (CID), Cash on Delivery (COD), Cash Against Delivery (CAD)
  • Delivery Time
  • Within 3 to 4 Weeks after receipt of technically and commercially clear firm order in writing. Week
  • Main Domestic Market
  • All India
