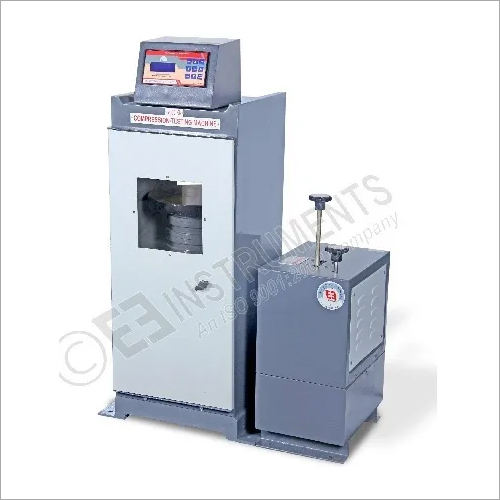

Digital Compression Testing Machine

Digital Compression Testing Machine
Send Inquiry
Product Code : TM-042
Brand Name : EIE
Price And Quantity
  • Minimum Order Quantity
  • 1 Piece
  • Price Range
  • 50000.00 - 300000.00 INR
Product Specifications
  • Color
  • Grey
  • Usage
  • Industrial
  • Product Type
  • Digital Compression Testing Machine
  • General Use
  • construction
  • Material
  • Steel
  • Automatic
  • Yes
  • Voltage
  • 220-240 Volt (v)
Product Description

Compliance with following International Standards

 IS    :   14858  2000and IS 516

Salient Features of EIE  Digital CTM Machine

  • 4 line Alphanumeric display with backlite, displaying  Actual Load, Peak load, Rate of loading and Calculated load in N mm
  • Four column high stiffness and high stability fully welded construction of the load frame.
  • Direct reading of compressive strength in Nmm2 No calculation required.
  • Peak hold facility.
  • Can manually control pace rate from 1 KNSec to 9 KNsec.
  • Pace rate indication in KNSec.
  • Bar Graph indication to control the pace rate
  • Built in memory for last 10 readings
  • Automatic internal calibration(without Proving ring)
  • Safety cut out for overload and electrical short circuit.
  • Safety door on the front side for operator safety.
  • Compact Pumping unit with manually variable rate of loading.

Capacity in kN

100

250

500

1000

2000

3000

5000

Platen size in mm

130 dia

150 dia

160 dia

200 dia

300 dia

320 dia

320 X 320

Ram dia in mm

90

90

120

165

205

260

330

Ram travel in mm

50

50

50

50

50

50

50

Vertical daylight in mm

200

200

230

300

350

350

520

Horizontal daylight in mm

170

200

230

300

350

370

425

Weight approx in kg

350

350

450

600

760

1150

2050



Trade Information
  • FOB Port
  • Ahmedabad
  • Payment Terms
  • Cash in Advance (CID), Cash Advance (CA), Letter of Credit (L/C), Cash Against Delivery (CAD), Telegraphic Transfer (T/T), Cheque
  • Supply Ability
  • 150 Piece Per Year
  • Delivery Time
  • 4 Week
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • Wooden packing with strong base
  • Main Export Market(s)
  • Middle East, South America, Africa, Australia, Asia
  • Main Domestic Market
  • All India
  • Certifications
  • ISO 9001 : 2015
